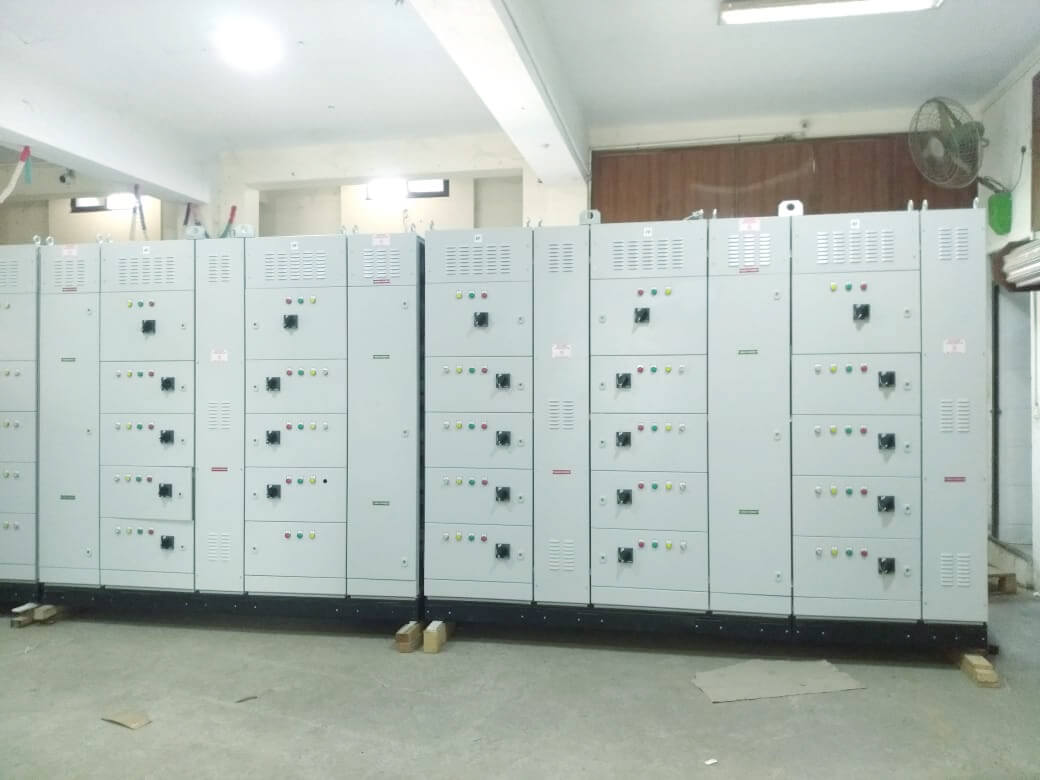

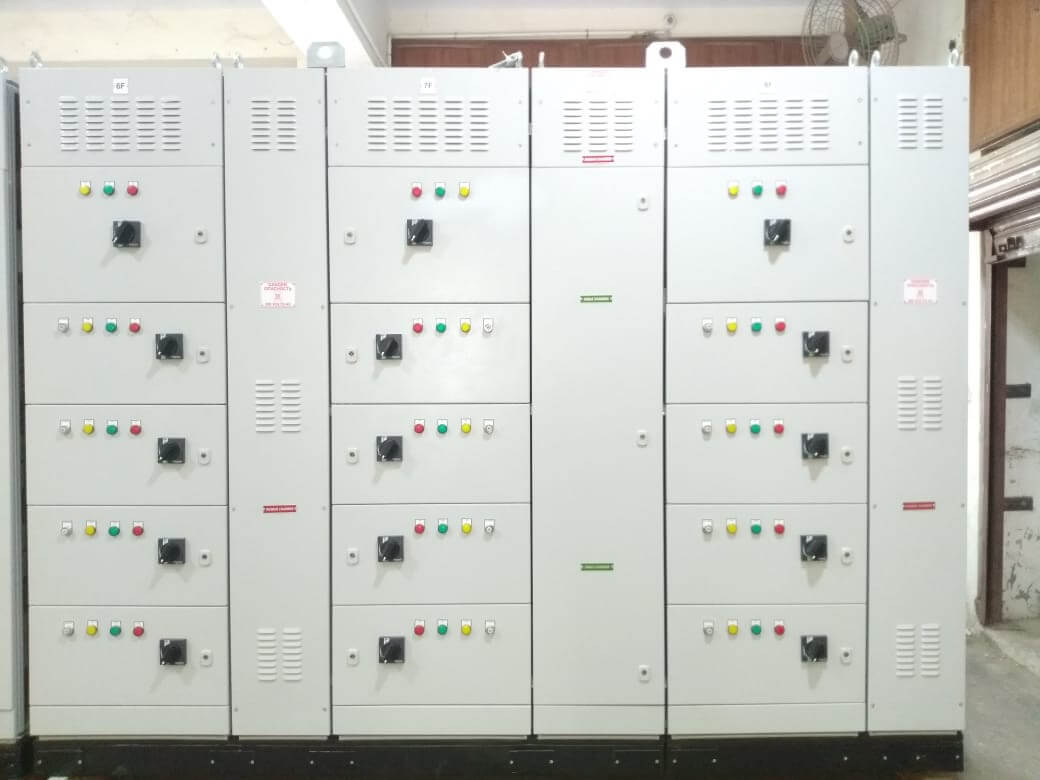

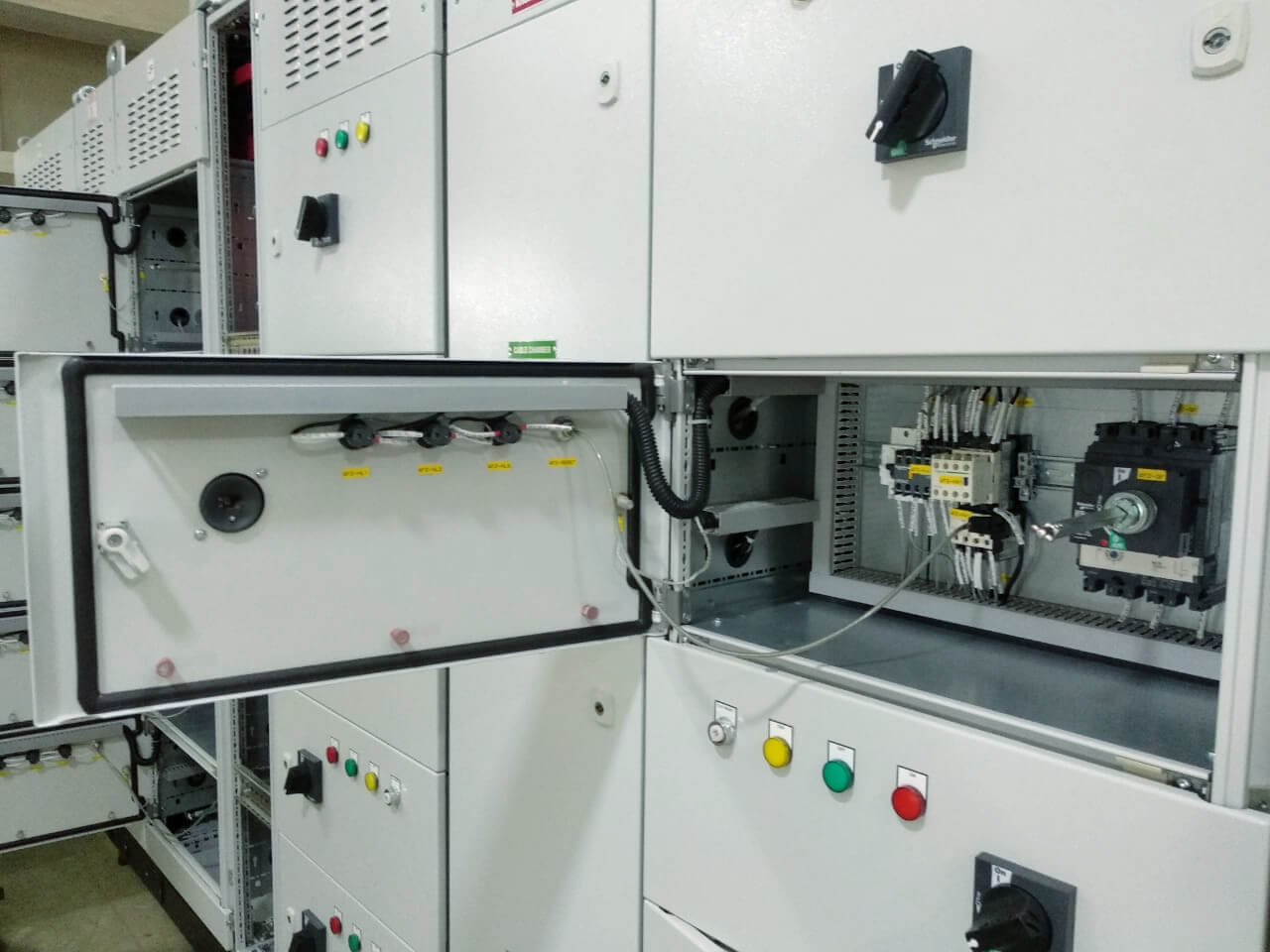

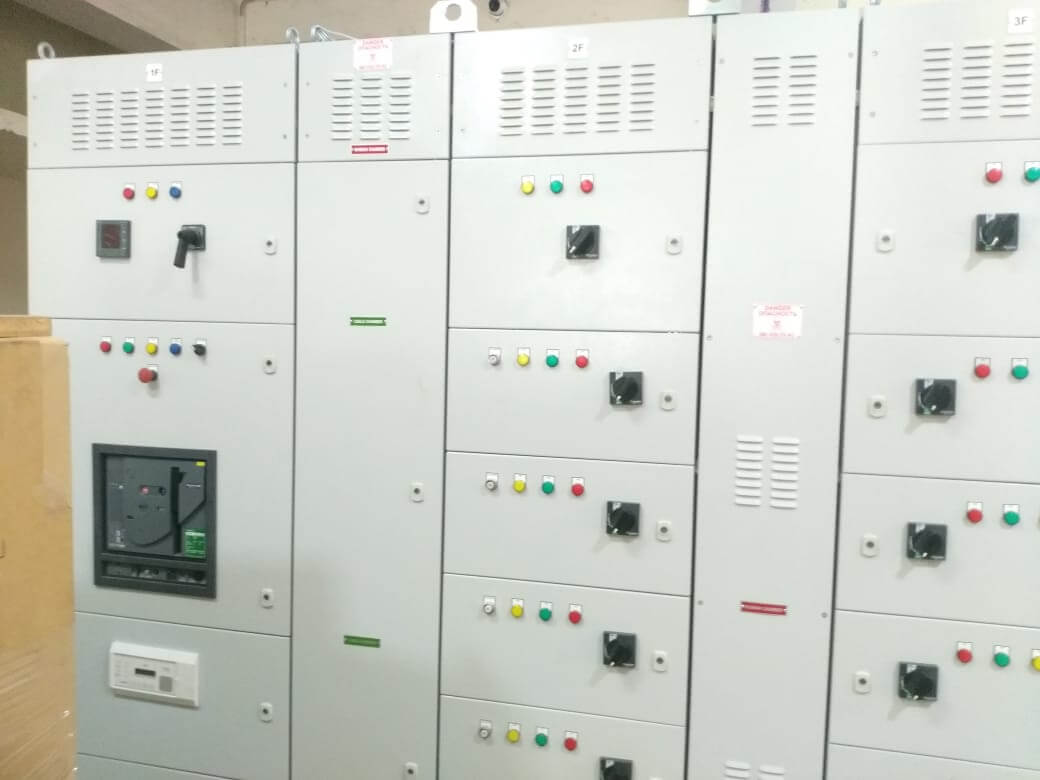

Power cum Motor Control Centre (PMCC)

Product Overview

Power cum Motor Control Centre panel is a combination of Motor Control Centre (MCC) and Power Control Centre (PCC).

These panels provide the power distribution & monitoring solution for your plant. Necessary safety features along with required accessories are provided for safe operation and operator safety.

These panels are used for providing the control of various motors for your plant. We work with the customer to understand their design philosophy and develop the control wiring diagrams accordingly. In special cases, we can also provide modular design allowing to shift feeders from one location to another to reduce the down time

Our design engineers collaborate with users / customers to bring out an optimum design solution. In special cases, we can also provide modular designs in PMCC, allowing to shift feeders from one location to another to reduce the down time

Features-

  • Modular/ Compartmentalized design
  • As per Standards IS 60439/ IS8623/
  • Ingress protection – standard IP42, up to IP55 when required
  • Design Isc level – up to 65KA for 1 Sec
  • Rated Current – Up to 6300A
  • Busbar material – EC Grade Copper / E91E Grade Aluminium
  • Sturdy Construction
  • Powder Coating with RAL 7035 / RAL 7032 or User specified
  • Large cabling space with adequate cable supports, are provided in cable Alley
  • Doors are open able with hinges for 110° Opening
  • Neoprene Gasket – -40 to 120°C
